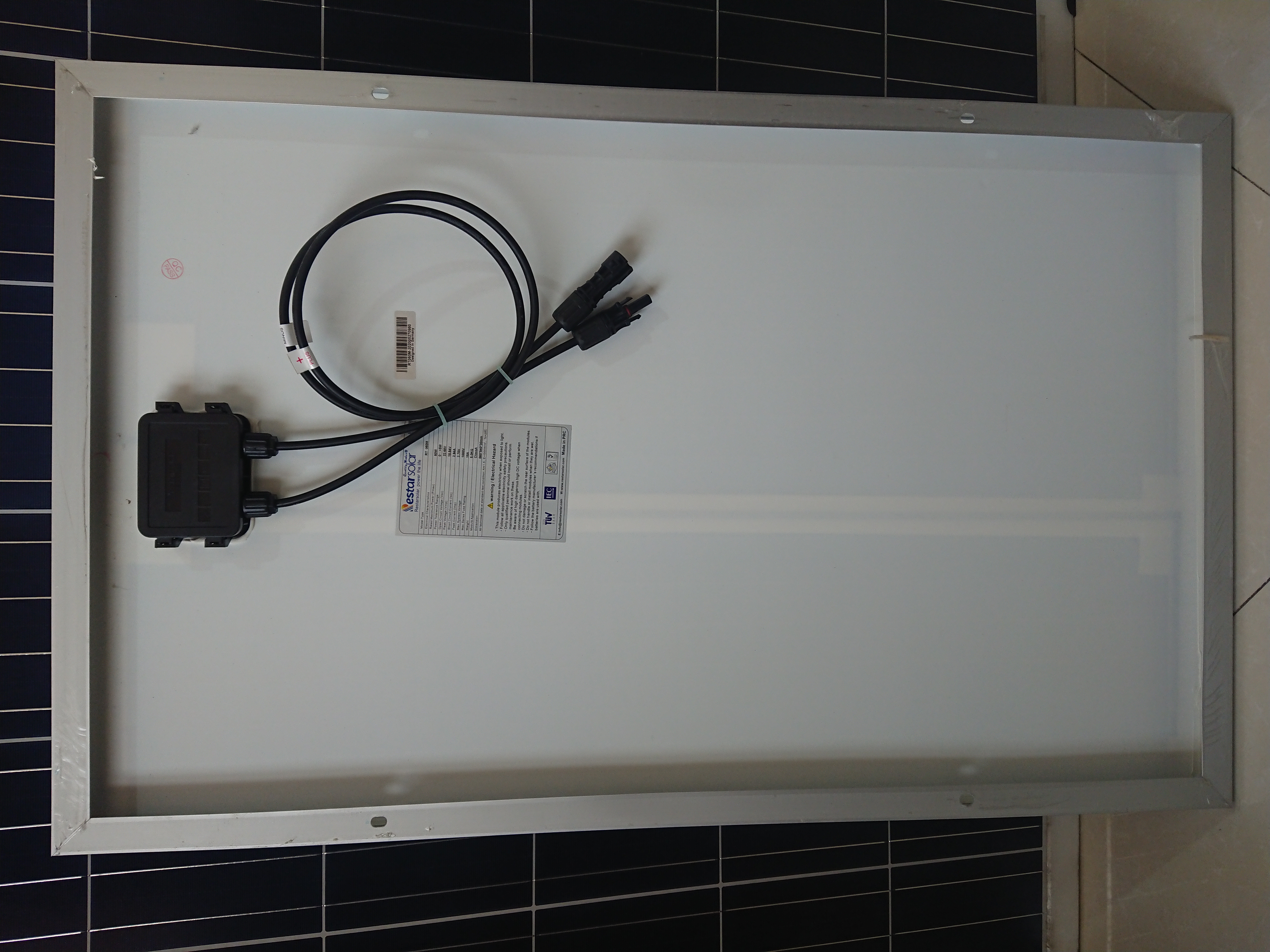

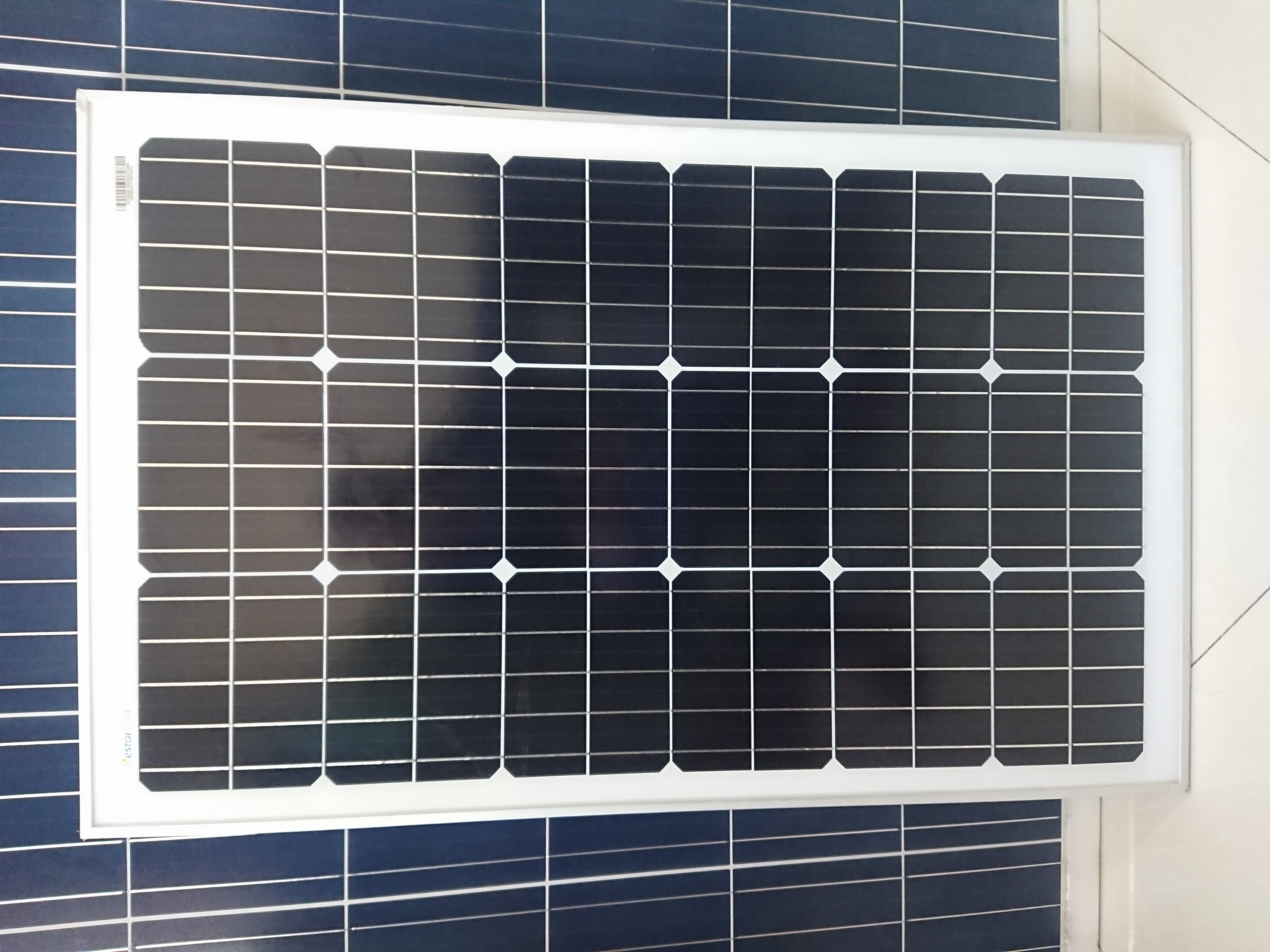

پنل خورشیدی 60 وات مونو کریستال Restar Solar مدل RT060M
اطلاعات
| RT060M |
Model Type |
| - |
Electrical Characteristics |
| 60W |
Rated Maximum Power (Pmax) |
| 0 ~ 5W+ |
Power Tolerance Range |
|
22.68V
|
Open Circuit Voltage (VOC) |
| 18.54V |
Peak Voltage (Vmp) |
| 2.94A |
Short Circuit Current (Isc) |
| 2.70A |
(Imp) Peak Current |
| 1000V |
Max.System Voltage |
| 15A |
Max.Series Fuse Rating |
| 5KG |
Weight |
| ClassA |
Modul Application |
| 30*540*860 mm |
Dimensions |
| AM1.5 , E=1000W/m2 , Tc=25C |
All technical data at standard test condition |
